hand sanitizer model

parametric CAD model of a hand sanitizer

2021   ·   mechanical-design   fusion-360   ·   cad

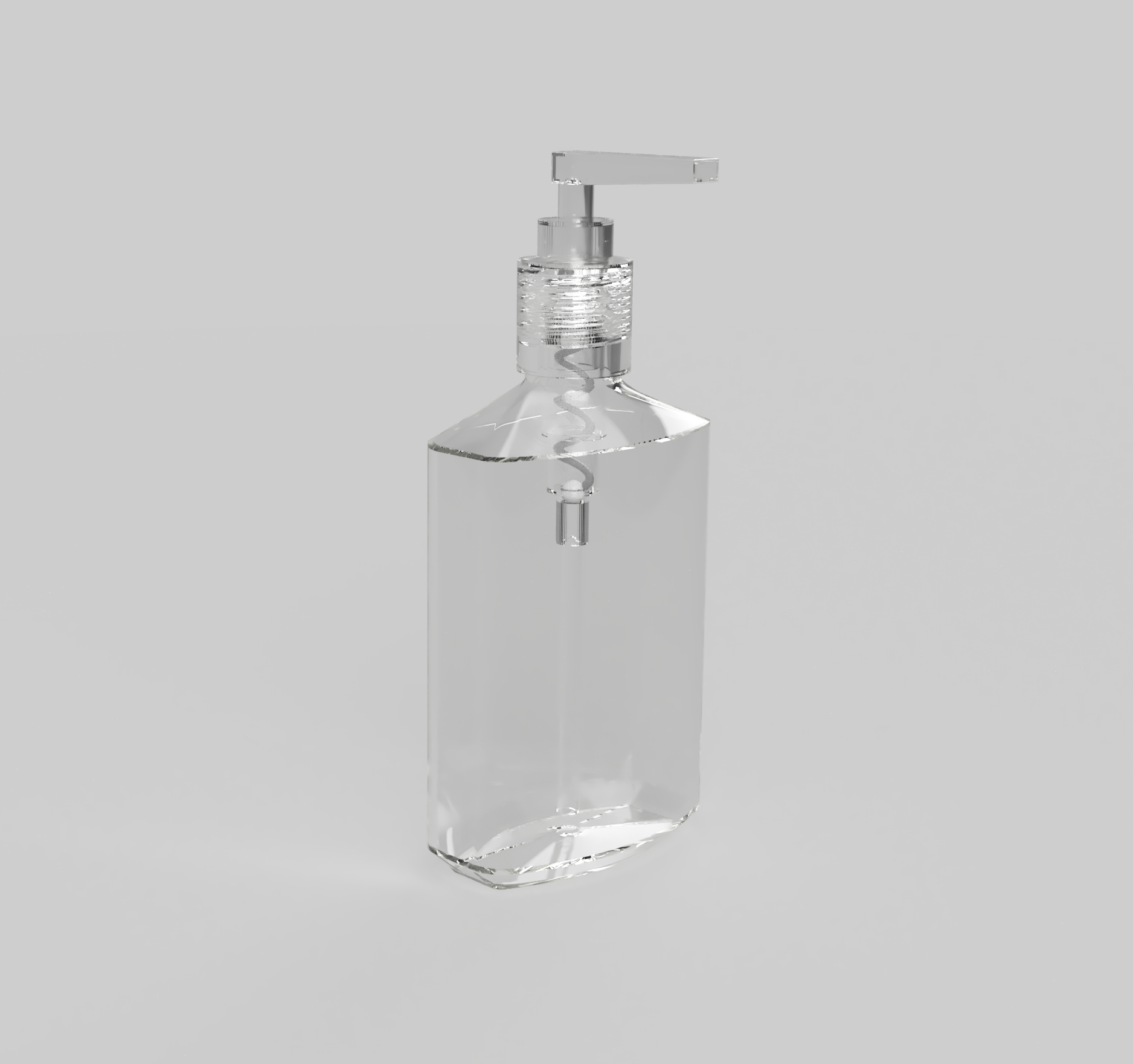

Designed a parametric CAD model of a hand sanitizer dispenser in Fusion 360, capturing the structure and assembly of a real-world product. The model includes components such as the bottle, internal pump mechanism, spring, ball valve, screw cap, and nozzle.
